Full Side PCD Inserts Aluminum TPGN TPGW TCGW One Side Pcd Cutting Tools

Name: Full Side PCD Inserts Aluminum TPGN TPGW TCGW One Side Pcd Cutting Tools
Brand: Halnn
Price: 1 USD

Wholesale Full Side PCD Inserts Aluminum TPGN TPGW TCGW One Side Pcd Cutting Tools from china suppliers

Brand Name : Halnn

Model Number : CCGW/TPGN/TCGW

Certification : ISO9001

Place of Origin : China

MOQ : 10 pieces

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : 10 pcs in one Plastic box inside, carton box outside

Materials : Diamond PCD

Orgin Country : China

Halnn Grade : CDW010

Models : CCGW/TCGW/TPGN

CBN Type : Full Side PCD Inserts

Machining Type : Turning/Boring/Milling

Contact Now

Full Side PCD Inserts TPGN/TPGW/TCGW One Side PCD Turning Tools

1. Full Side PCD Inserts

(1) PCD Inserts can ensure high precision

(2) Halnn diamond material is a synthetic material sintered under high temperature and high pressure.
(3) PCD Insert is ideal cutting tools for machinig non-ferrous metals, non-metal turning, milling and other types of cutting.

2. The featuers of Full Face PCD Inserts

Halnn Full Face PCD inserts make sure the long tool life due to high hardness, and stable machining due to high thermal conductivity.

The manufacturers can machine at high cutting speed, which improve the process efficiency. Even with high cutting speed, the insertw will be flank wear.

3. Specification of full side pcd inserts

Full Side PCD Inserts CCGW/CCMW
Model	Dimension				Relief angle
Model	I.C	S	d	r	Relief angle
CCGW060201HS	6.35	2.38	2.8	0.1	0°
CCGW060202HS	6.35	2.38	2.8	0.2
CCGW060204HS	6.35	2.38	2.8	0.4
CCGW09T302HS	9.525	3.97	4.4	0.2
CCGW09T304HS	9.525	3.97	4.4	0.4
CCGW09T308HS	9.525	3.97	4.4	0.8

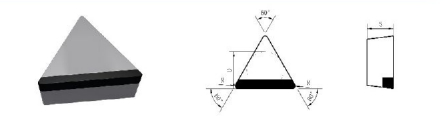

Full Side PCD Inserts TPGN
Model	Dimension			Relief angle
Model	I.C	S	r	Relief angle
TPGN090202HS	5.56	2.38	0.2	0°
TPGN090204HS	5.56	2.38	0.4
TPGN110302HS	6.35	3.18	0.2
TPGN110304HS	6.35	3.18	0.4
TPGN110308HS	6.35	3.18	0.8
TPGN160302HS	9.525	3.18	0.2
TPGN160304HS	9.525	3.18	0.4
TPGN160308HS	5.56	2.38	0.2
TPGN160312HS	5.56	2.38	0.4

Full Side PCD Inserts TPGW/TPMW
Model	Dimension				Relief angle
Model	I.C	S	d	r	Relief angle
TPGW080202HS	4.76	2.38	2.4	0.2	0°
TPGW080204HS	4.76	2.38	2.4	0.4
TPGW090202HS	5.56	2.38	2.8	0.2
TPGW090204HS	5.56	2.38	2.8	0.4
TPGW090208HS	5.56	2.38	2.8	0.8
TPGW110202HS	6.35	2.38	2.8	0.2
TPGW110204HS	6.35	2.38	2.8	0.4
TPGW110208HS	6.35	2.38	2.8	0.8
TPGW110302HS	6.35	3.18	3.4	0.2
TPGW110304HS	6.35	3.18	3.4	0.4
TPGW110308HS	6.35	3.18	3.4	0.8
TPGW160302HS	9.525	3.18	4.4	0.2
TPGW160304HS	9.525	3.18	4.4	0.4
TPGW160308HS	9.525	3.18	4.4	0.8
TPGW16T304HS	9.525	3.97	4.4	0.4
TPGW16T308HS	9.525	3.97	4.4	0.8
TPGW16T312HS	9.525	3.97	4.4	1.2
TPGW160402HS	9.525	4.76	4.4	0.2
TPGW160404HS	9.525	4.76	4.4	0.4
TPGW160408HS	9.525	4.76	4.4	0.8
TPGW160412HS	9.525	4.76	4.4	1.2
